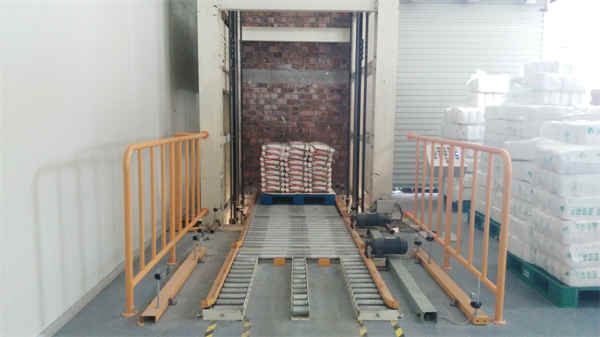

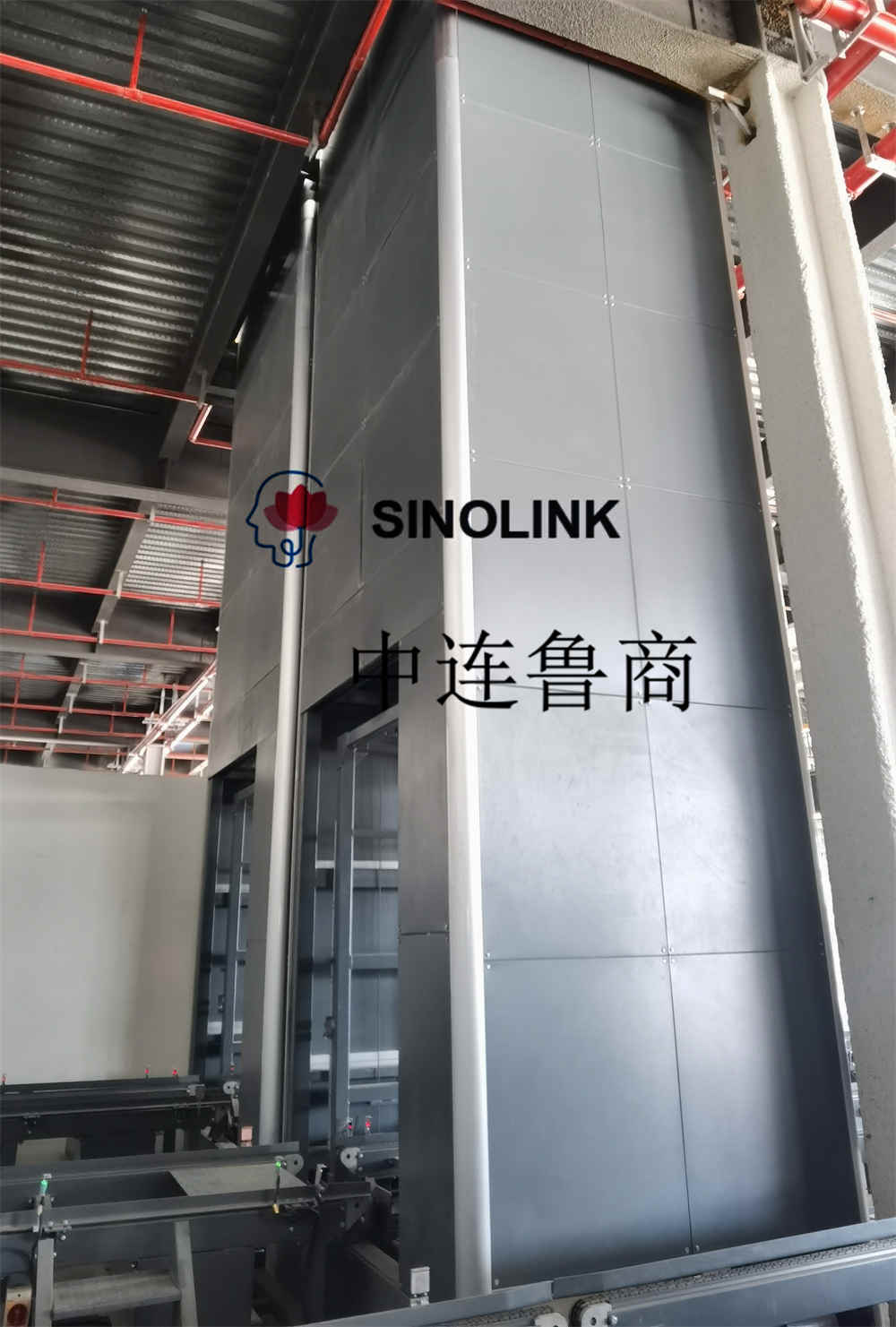

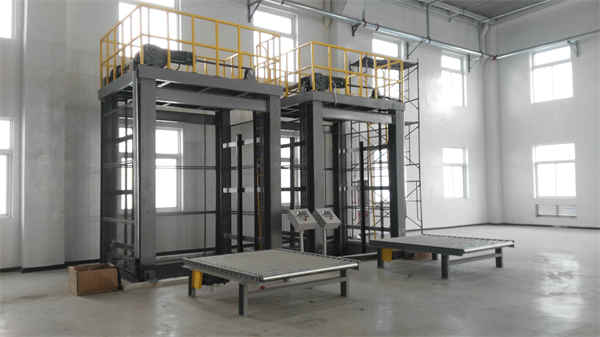

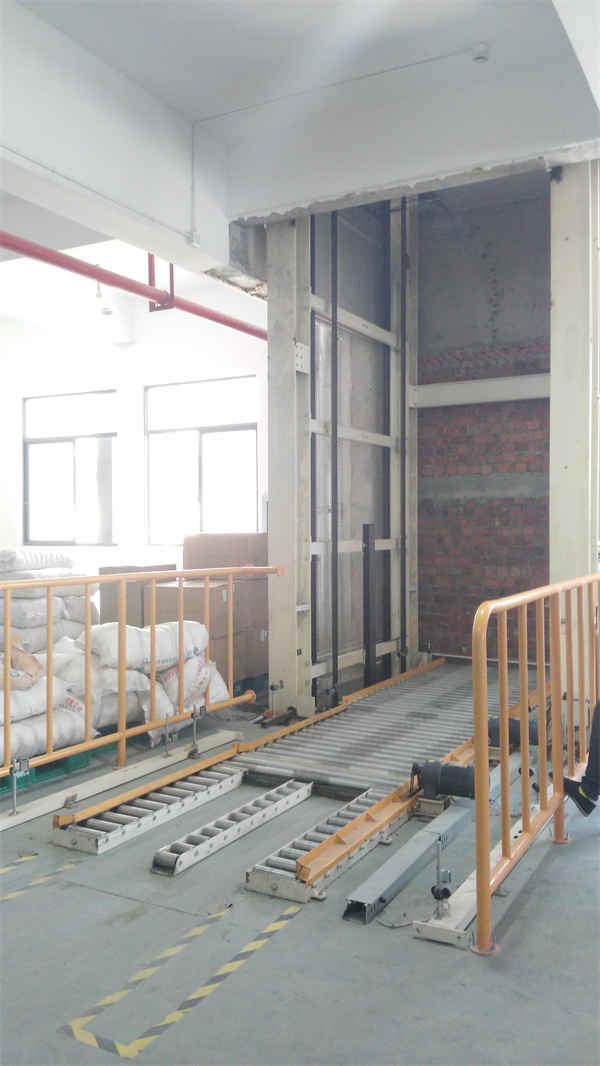

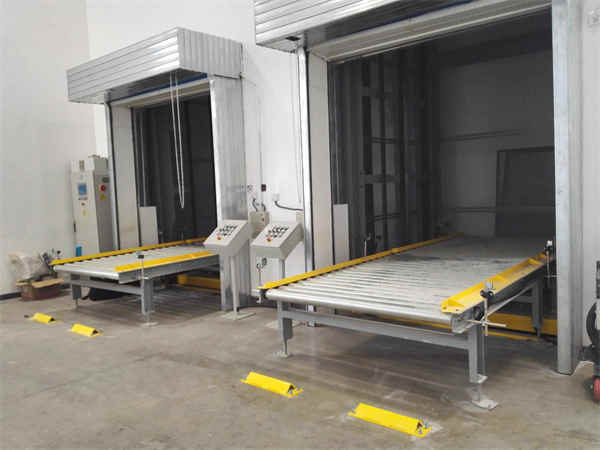

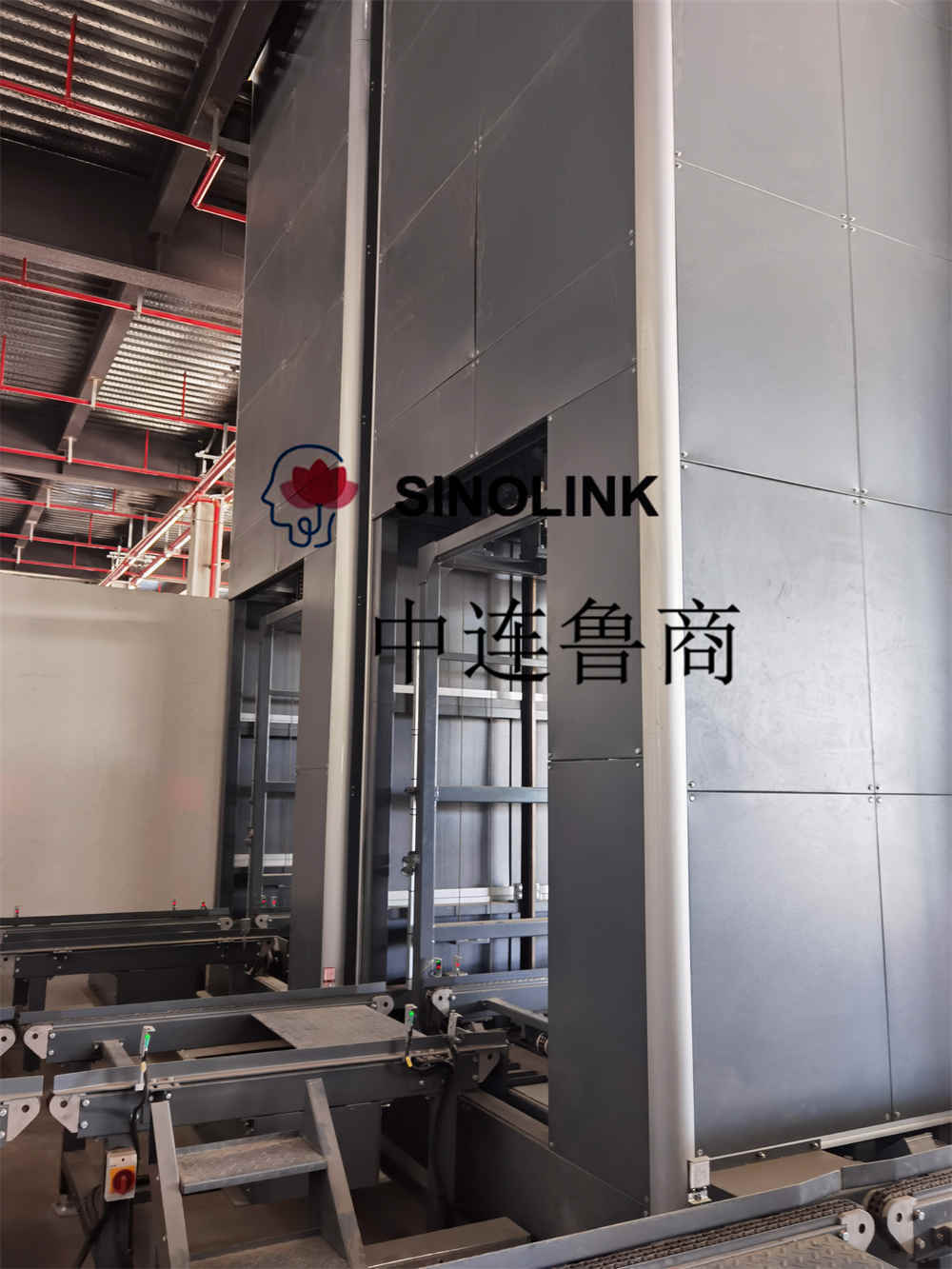

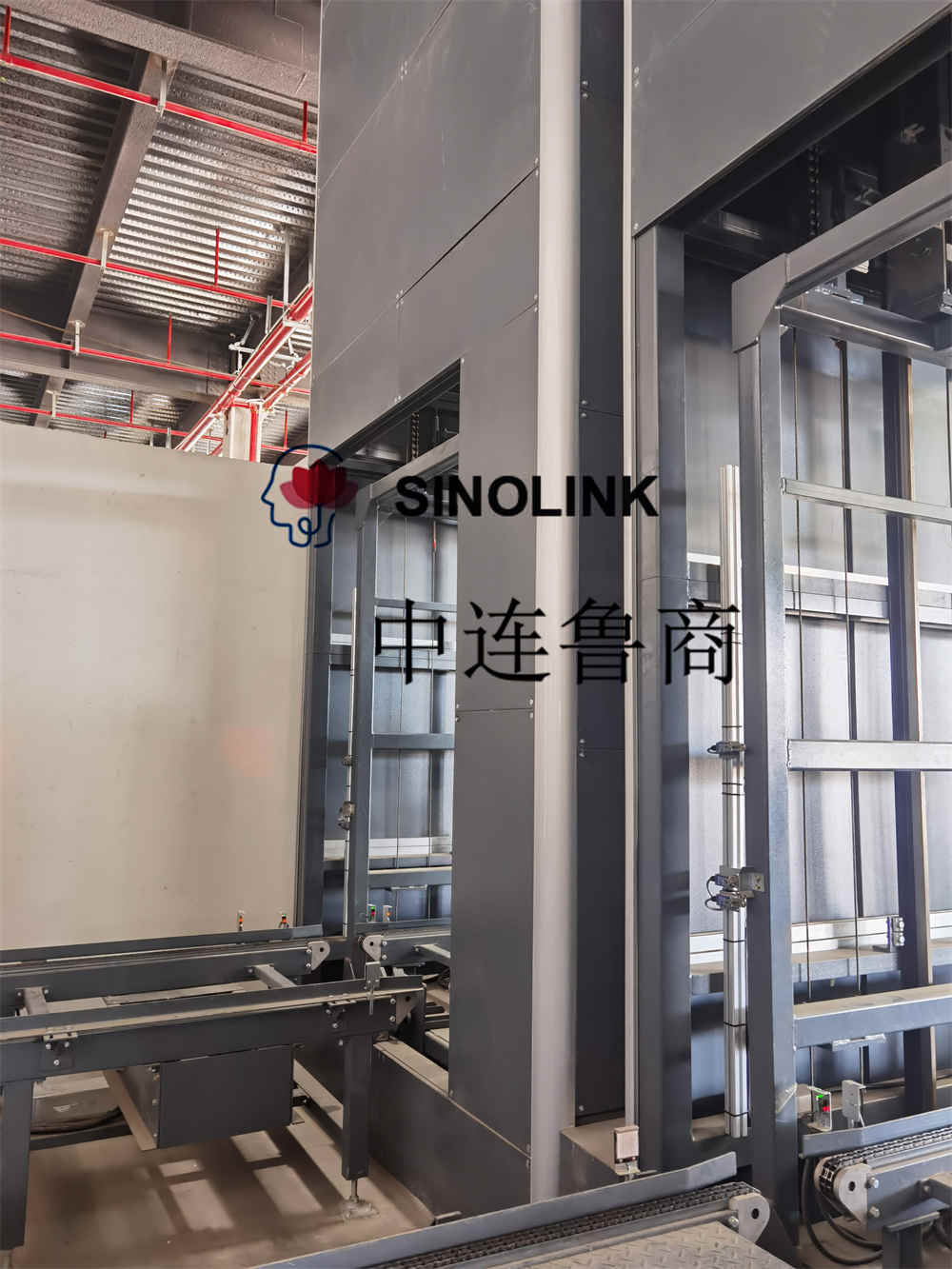

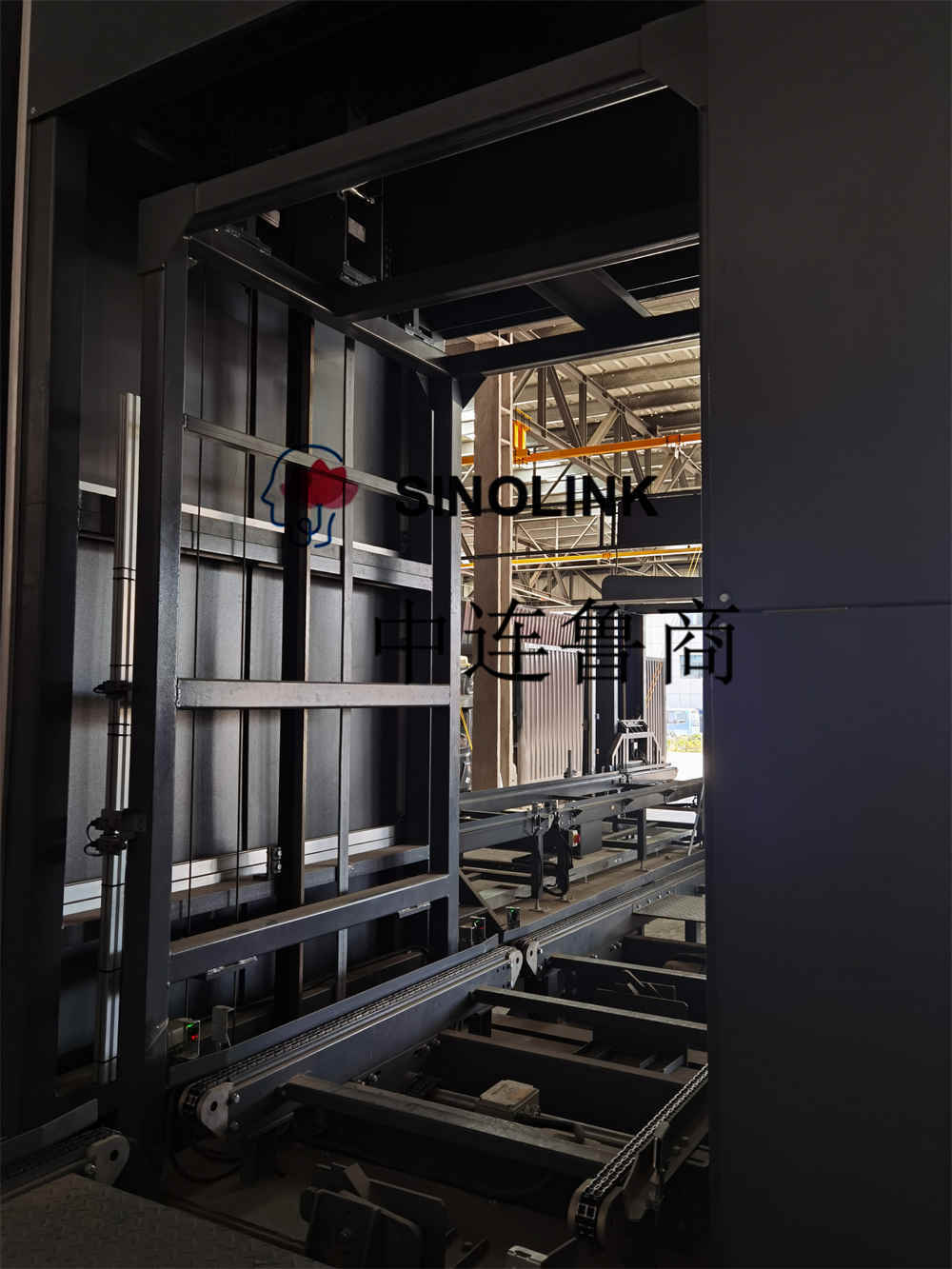

全自動無人往復垂直リフトコンベヤ

全自動無人往復垂直リフトコンベヤ用昇降装置：

カートン、織袋、プラスチック樽など各種商品の垂直昇降に適した全自動無人重荷重型垂直昇降コンベヤです。

1 基本フレーム
1 Material: 80*80mm aluminum alloy profiles, linked and assembled by means of screws
two Protective screening: exterior body adopts obvious natural glass

2 搬送システム
1 The most important chain makes use of carbon metal 16A-1 curler chain whose pitch is 25.4mm with W-2 bending plates bilaterally.
two The pallet chain adopts unidirectional bending, pitch 25.4mm.
three The pallet makes use of 9269K aluminium profile, the floor is macromolecule plastic

3 駆動方式
1 The foremost axis makes use of carbon metal with nigrescence treatment, diameter 55mm
two Drive sprocket makes use of 16A-17 duplex chainwheel. Driven wheel makes use of 16A-17 easy chainwheel
three Tension bridle gadget makes use of T208 undeniable bearing housing
four The energy is SEW equipment reducer motor
4 制御システム
1 The manipulate software is Taiwan Yonghong PLC programming
two Detecting optoelectronic swap is Omron brand
three The manage cupboard is made of carbon steel

5 垂直上昇コンベアのワークフロー
The product to be delivered is ready on the conveying line related to the elevator. When the photoelectricity detects that the pallet is in place, the PLC troubles a command. The blockading gadget will launch or the conveying line will start, and releases a product to the pallet. When the 2nd product arrive at the ready position, the block will raise or the conveying line stops and starts to wait for the photoelectricity to observe the subsequent pallet, then the PLC programming will trouble a command once more to launch the product.

詳細な要件については、いつでもお問い合わせください。私たちは、お客様にとって最も最適化されたプログラムを提供するお手伝いをしなければなりません。
